Codebase Memory MCP: Give Your Coding Agent a Map (2026)

Codebase Memory MCP: Stop Making Your Coding Agent Read Your Repo as Flat Text

Ask a coding agent to change something in a big codebase and you know what happens. It greps, gets a wall of matches, opens 20 files one by one, and still misses half the places that might break.

Here is the thing though: your codebase is already a map. Every import is an edge. Every function call is an edge. Your agent throws that structure away and reads the whole thing as flat text.

Codebase Memory MCP fixes this by indexing your repo into a persistent code graph - functions, classes, call chains, routes, cross-file and cross-service links - that the agent queries instead of grepping. It is written in C, parses 158 languages via tree-sitter, indexes most repos in seconds, and answers structural queries in under a millisecond. When I ran the same architecture question with and without it on my own monorepo, token consumption dropped from ~38,000 to ~11,000. Over a two-question session: 64,000 vs 33,000. About half.

Prefer to watch? Here is the full walkthrough:

Why grep burns your context window

The default exploration loop every coding agent runs on a structural question looks like this:

1. Grep for the identifier. Get matches across dozens of files.
2. Read the files one by one. Each read dumps hundreds or thousands of lines into context.
3. Follow the imports. More reads.
4. Try to hold the reconstructed structure in the context window while doing the actual work.

Every step pays full price because grep returns text, not structure. The agent has to rebuild the relationships between symbols from scratch, on every task, by reading source. Claude Code has subagents to contain this (the search runs in a separate context), which helps with pollution but is slow, and the cost still gets paid somewhere.

This is context engineering's ugliest corner: in production agents, roughly 100 input tokens are consumed for every output token, and on large-repo tasks a huge share of those inputs is just re-discovering how the code fits together. The project's arXiv evaluation across 31 real-world repositories puts numbers on it: graph-based exploration answered structural questions with 10x fewer tokens and 2.1x fewer tool calls than file-by-file exploration, at 83% answer quality. The README's extreme benchmark: five structural queries cost ~3,400 tokens via the graph versus ~412,000 via grep-and-read.

What Codebase Memory MCP actually is

Codebase Memory MCP is an open-source (MIT) MCP server that extracts every function, class, method, route, and import from your code and builds a relationship graph out of them. Cross-file, cross-package, even cross-repo: if service A calls an HTTP route in service B, that edge is in the graph.

Two design decisions make it different from the pile of codebase-index tools you have already seen and forgotten:

1. No LLM in the indexing pipeline. Earlier projects ran a language-model pass to write a "knowledge map" of your repo. Those maps cost money to build, took minutes to hours, and went stale the moment the code changed. Codebase Memory MCP parses with tree-sitter grammars in pure C. Indexing is purely programmatic: an average repo indexes in seconds, and the Linux kernel - 28 million lines across 75,000 files - indexes in about 3 minutes. Rebuilding on change is cheap enough that the graph just stays current.

2. It meets the agent where it already works. More on the hook pattern below, because it is the most copyable idea in the project.

The agent gets a toolset that replaces the grep-read-repeat loop:

That last pairing is the token win in miniature: instead of reading a 2,000-line file to see one function, the agent asks the graph where the function is and pulls only its body.

detect_changes is the sleeper feature for teams. Point it at a PR diff and it returns the blast radius - every symbol the change can reach - which turns agent code review from "read everything and hope" into a graph query.

The hook pattern: why this MCP works when others get ignored

Here is the failure mode that killed most code-search MCPs: the agent forgets to use them. You install a beautiful semantic search tool, and the agent... greps anyway. Claude Code and Codex are heavily optimized around their built-in search tools, and no system prompt reliably overrides that habit.

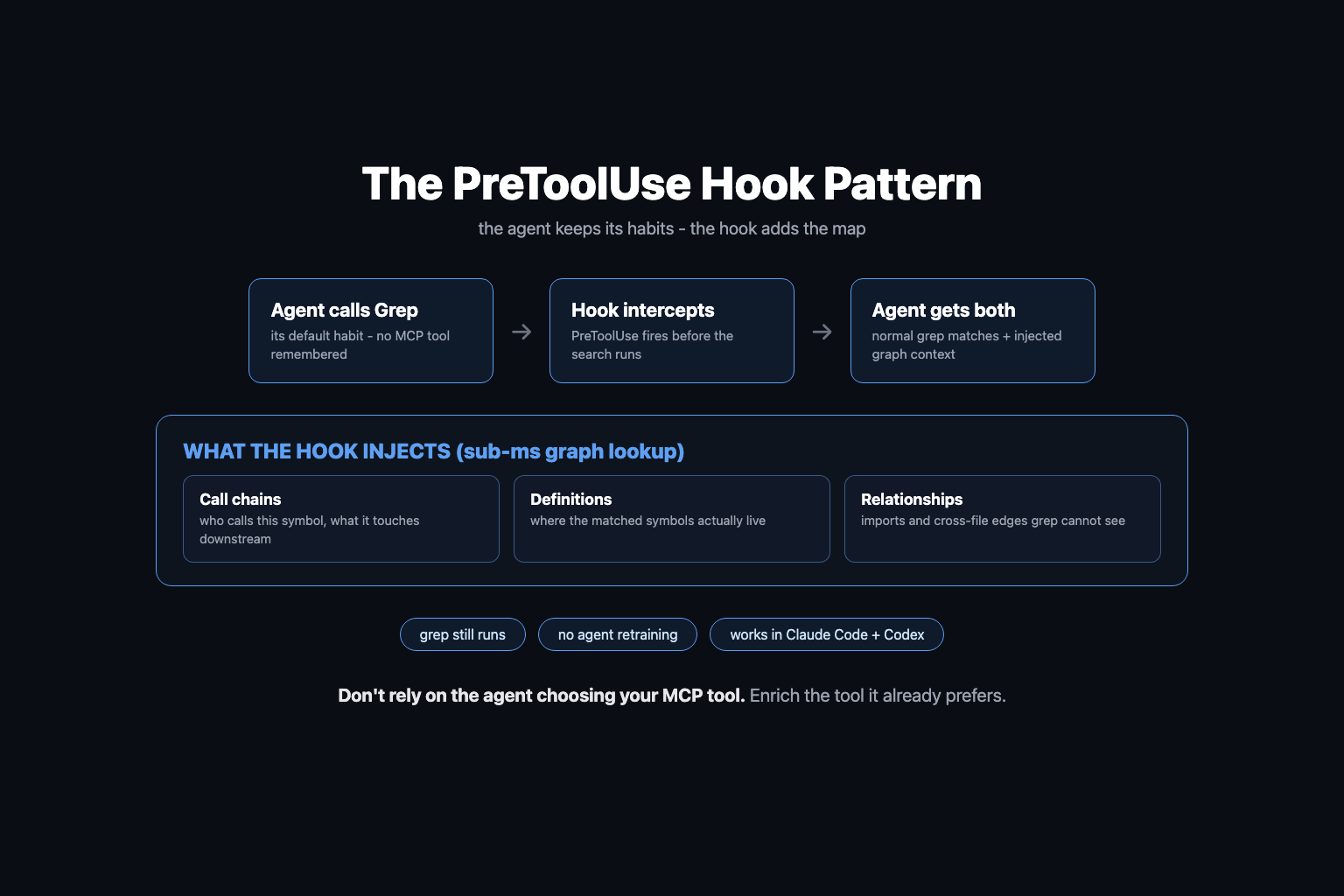

Codebase Memory MCP acknowledges this instead of fighting it. On Claude Code it registers a PreToolUse hook: when the agent calls its normal Grep or Glob tool, the hook intercepts the call, runs the graph lookup for matching symbols, and injects the structured context - call chains, relationships, definitions - alongside the ordinary grep results. The grep still runs. The agent just gets the map with the matches, whether or not it remembered the MCP exists.

If you are building MCP tools yourself, steal this. Do not rely on the model choosing your tool over its built-ins; use hooks to enrich the tools it already prefers. It is the difference between shipping a tool and shipping a behavior.

The real test: tracing a hidden lock through a monorepo

I indexed the codebase for Superdesign, our vibe-design platform. It has a backend function called createDesignDraftNode - the tool an agent calls to add a design to the infinite canvas. Because multiple agents can generate designs on the same canvas at once, everything flows through a queue guarded by a canvas lock.

The catch: the lock is invisible from where the work starts. createDesignDraftNode never calls it directly; the protection is delegated down through layers. Grep that file for "lock" and you get nothing. Any agent (or human) reading the entry point would conclude the protection does not exist.

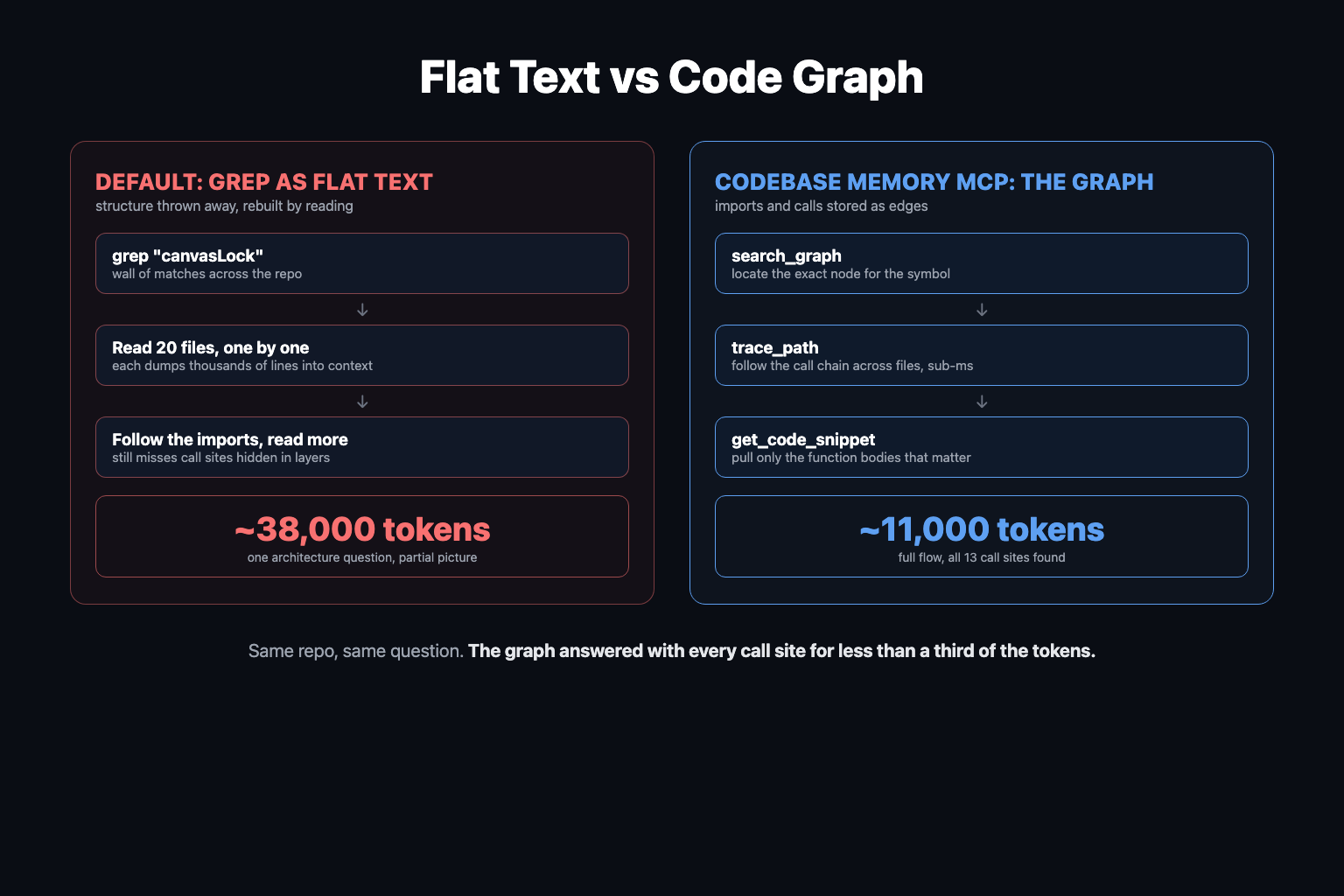

So I asked two questions, in two sessions - one with the graph, one with MCP explicitly disabled:

Same model, same repo, same questions. Half the tokens, and the graph version found every call site - which matters more than the cost, because the expensive failure is the new engineer (or agent) who decides the lock "slows things down," tweaks it, and ships a race condition. Ask "what will break if I change this?" and the graph answers with the actual dependency list instead of a best-effort sample.

Those are my numbers on one repo, measured from Claude Code's context inspector; your ratio will move with repo size and question type. The pattern held across every structural question I threw at it: the bigger and more cross-cutting the question, the wider the gap.

How to set it up (2 commands, ~10 minutes)

1. Install. One command on macOS/Linux:

curl -fsSL https://raw.githubusercontent.com/DeusData/codebase-memory-mcp/main/install.sh | bash

Want the graph visualization UI too:

curl -fsSL https://raw.githubusercontent.com/DeusData/codebase-memory-mcp/main/install.sh | bash -s -- --ui

The installer auto-detects your installed agents (Claude Code, Codex CLI, Gemini CLI, Zed, OpenCode, Antigravity, Aider, KiloCode, VS Code, OpenClaw, Kiro) and configures the MCP entries and hooks for each. Single static binary, zero runtime dependencies.

2. Index. Open your coding agent in the repo and tell it: "Help me use codebase memory MCP." It will run the indexing, and if your repo already has decent documentation it applies ignore filters on its own - mine correctly skipped the legacy folders. My semi-complex monorepo indexed in a few seconds.

3. Verify. Ask it to trace a function you know is load-bearing. You should see search_graph and trace_path calls come back with the full chain, no file-by-file reading.

4. (Optional) Look at your graph. With the UI install: codebase-memory-mcp --ui=true plus a port gives you a web view of the whole graph. Is it useful? Honestly not sure. It does look really cool.

Where this fits: the codebase harness

A code graph is one ingredient, not the whole meal. The repos where agents ship reliably have a full harness: a way to run the app locally in one command, end-to-end tests that gate PRs, isolated sandboxes for parallel work, and now a structural map of the code.

That is why we added Codebase Memory MCP to /setup-codebase-harness in the open-source AI Builder Club skills repo. Run the skill in your repo and it sets up the MCP and index alongside the rest: e2e test gates, the script toolkit that gets your local server running, and Crabbox for parallel agent testing in remote sandboxes. One command, and your codebase goes from flat text to something an agent can actually navigate, run, and verify against.

If you are optimizing agent costs more broadly, the graph attacks the input side; reducing Claude Code API costs covers the rest of the bill.

Related Content

• Context Engineering: The 100:1 Ratio - Why input tokens dominate agent costs and the four strategies for managing them.
• Claude Code Hooks: The Complete Guide - The mechanism behind the PreToolUse pattern this project uses so well.
• Crabbox: Cloud Sandboxes for Parallel Agents - The runtime-isolation half of the same codebase harness.
• MCP 101: Build Your First MCP Server - If the hook-enrichment pattern made you want to build your own.
• Loop Engineering Guide - The bigger system this plugs into: agents that trigger, work, and verify on their own.

Start Here

Install Codebase Memory MCP in the repo where your agent does real work, index it, and ask one question you already know the answer to: "what breaks if I change X?" Compare what comes back against what you know. That single test tells you whether your agent has been navigating your codebase or guessing at it.

Then make it part of the harness: run /setup-codebase-harness from the AI Builder Club skills repo so every agent session starts with the map.

For the step-by-step build alongside a team running this in production, join the AI Builder Club.
